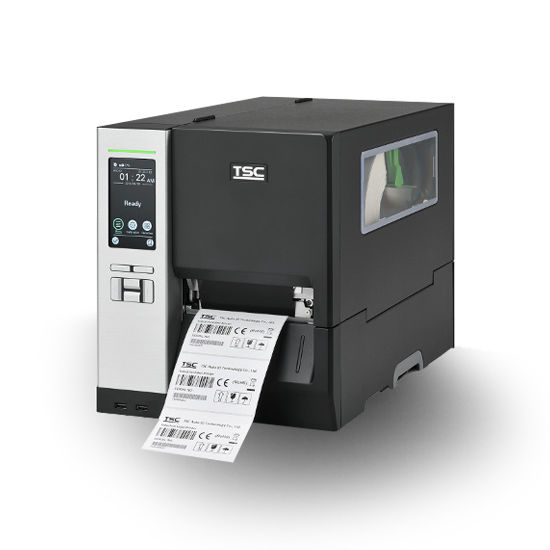

TSC MH240 SERIES
The MH240 series is TSC's most popular industrial barcode label printer. The MH240 series offers excellent printing technology, a new faster processor and all the memory needed by the customer to print high quality labels at maximum speed. The MH240 series offers the best print quality TSC has ever offered thanks to the latest technology in combination with faster processors and updated firmware: the new improved "Thermal Smart Control" print quality tracks and accurately calculates the time that each pixel needs to be heated, in order to always offer precise, clear and sharp labels, both for printing one label at a time and for a queue of thousands of labels. Colorful intelligent display The new MH240 series is equipped with a 4.3 ”high contrast color LCD display with 6-button menu and touch panel with an easy-to-use control design to set printer settings and check the status of jobs .
Common tasks like label calibration are at your fingertips. The menus can be customized to facilitate any operation, making the MH240 series the simplest printer
to use.
TECHNICAL FEATURES





PRINTING METHOD: Thermal and / or Direct Thermal Transfer
PRINT SPEED: At 203 dpi up to 356 mm / s - At 300 dpi up to 305 mm / s - At 600 dpi up to 152 mm / s
RESOLUTION : 203 dpi - 8 dots / mm - 300 dpi - 12 dots / mm - 600 dpi - 24 dots / mm.
PAPER PASSAGE: from 20 mm to 114 mm.
PRINT LENGTH: 25.400mm.




PRINTING AREA: 104 mm
EXTERNAL DIAMETER ROLL: 203.2 mm
MEMORY: 128 MB Flash memory, 128 MB SDRAM and microSD reader up to 32 GB
INTERFACE: USB 2.0, RS-232, Ethernet 10/100 Mbps AND 2 USB Host
