CAB IROX
For belt speeds up to 200 m/min

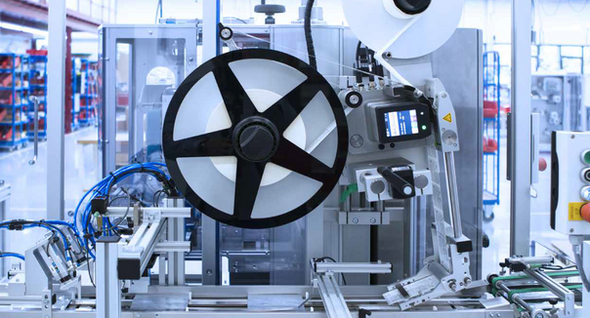

In CAB’s IXOR series, thanks to a modular and compact design, the basic control unit can be installed separately from the media unwinding and rewinding assembly, facilitating integration even in very confined or complex machine spaces.
The design of IXOR stems from the need to meet the growing demand for high-speed automation and flexibility in modern packaging processes. The hardware architecture is optimised to ensure maximum label positioning accuracy, even during the acceleration and deceleration phases of the production line.
This makes it the ideal solution for high-performance sectors such as pharmaceuticals, cosmetics, beverages and food packaging, where millimetre-level precision is a critical requirement for compliance with quality standards.
In terms of operation, the platform benefits from advanced logic management that minimises machine downtime and manual calibration.
Integration with the main communication protocols and the unified user interface allow for the rapid configuration of operating parameters and label formats, offering complete control both on-machine and remotely. This ensures high operational flexibility for original equipment manufacturers (OEMs) and system integrators who require components that are quick to install, easy to programme and reliable over time.
INFO
Main Features & System Architecture
-
Motor & Mechanics: High-dynamic AC servomotor with high torque integrated into a single-piece cast aluminum frame.
-
Modularity & Orientation: Can be installed vertically or horizontally. Unwinder and rewinder can be mounted separately from the base unit.
-
High Protection Class: Certified IP66 rating (NEMA 250 type 12 / UL 50 type 12) suitable for harsh industrial environments.
-
M12 Connectivity: Power and Ethernet connections via industrial M12 circular connectors, resistant to vibration and dust.
-
Control Panel: Integrated 3.5” color LCD display (QVGA, 54 x 70 mm) with LED keys (ON, FEED) and an intuitive user interface accessible locally or remotely.
-
CAB Line Compatibility: Shares mounting dimensions, firmware, user interface, sensors, dispensing modules, pressure rollers, and mounting accessories with the ROXI series.
Web Speed Performance
The maximum web speed depends on the unwinder and rewinder configuration: 1. Mechanical unwinder and mechanical rewinder: up to 50 m/min
2. Mechanical unwinder + motorized rewinder: up to 75 m/min
3. Motorized unwinder and motorized rewinder: up to 120 m/min (up to 200 m/min on request for special applications)
Interfaces & Industry 4.0 Integration
IXOR includes a complete set of logical and power connections to communicate with line PLCs or factory management systems:
-
Digital I/O Interface: 17-pin connector (24 V PNP, galvanically isolated) for START, STOP, APPLY, SYNC, END/DIM signals, and machine status.
-
Analog Interfaces: 0-10 V / 0-24 V inputs for speed and parameter adjustments via external potentiometer or PLC.
-
Network & Smart Factory Protocols: Native support for Ethernet, WLAN (802.11 b/g/n), MQTT, OPC UA, Modbus, and EtherNet/IP.
-
Synchronization: Input for external encoder (Masterencoder 24V HTL) for dynamic synchronization with conveyor belt speed.
-
Peripheral Ports (APPLY): 12-pin connector for direct connection of USB signal lamps, auxiliary applicators, or stop/end-of-material sensors.
-
Data Memory: Capacity to store up to 100 different product formats directly in the device.
Technical Specifications & Operational Parameters
Working Widths: IXOR 62 (up to 58 mm) / IXOR 124 (up to 120 mm) / IXOR 186 (up to 182 mm) (up to 310 mm for special versions)
Liner Width: Up to 124 mm, 186 mm, 248 mm, or 310 mm
Label Length (Feed): From 5 mm to 6,000 mm
Minimum Label Distance: From 2 mm
Label / Liner Thickness: From 0,055 mm to1,0 mm
Material Weight Range: From 60 to 700 g/m²
Label Materials: Paper, plastics (PET, PE, PP, PVC), and booklets (upon request)
Unwinder (Max Roll Outer Diameter):Mechanical: 310 mm or 410 mm / Motorized: 410 mm (510 mm upon request)
Unwinder (Core / Winding): Core diameter 76 mm (3”); inside or outside winding; max roll weight 15 kg
Rewinder (Max Roll Outer Diameter): Mechanical: 210 mm or 290 mm / Motorized: 310 mm (410 mm upon request); Core diameter 92 mm
